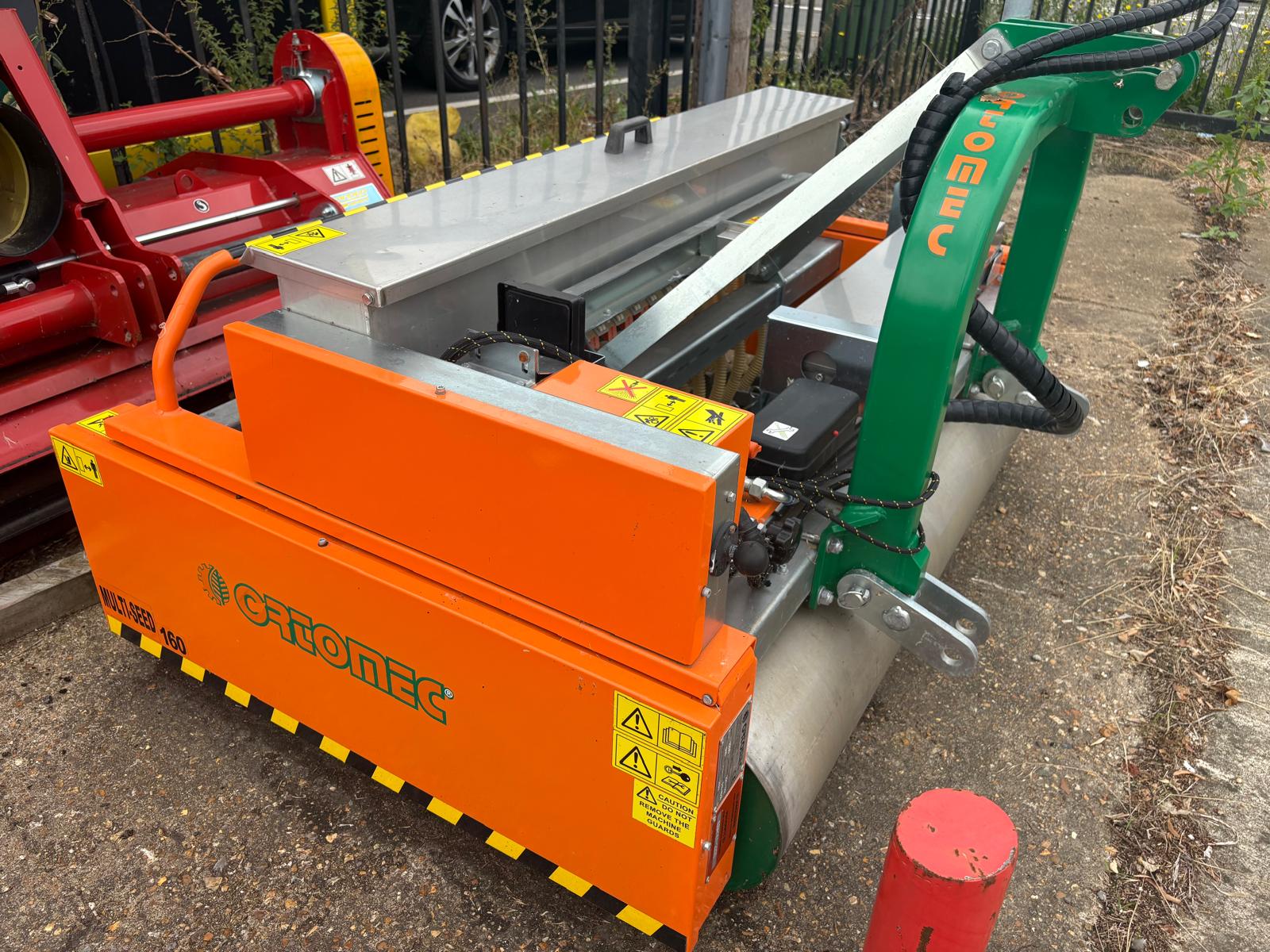

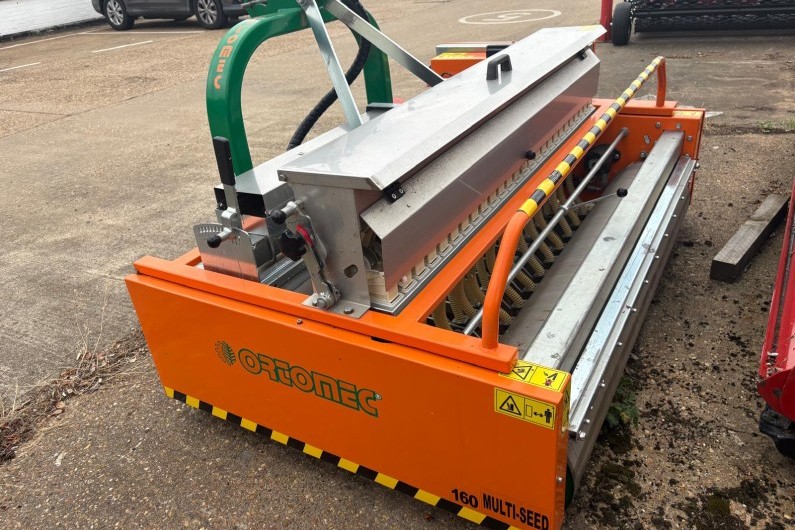

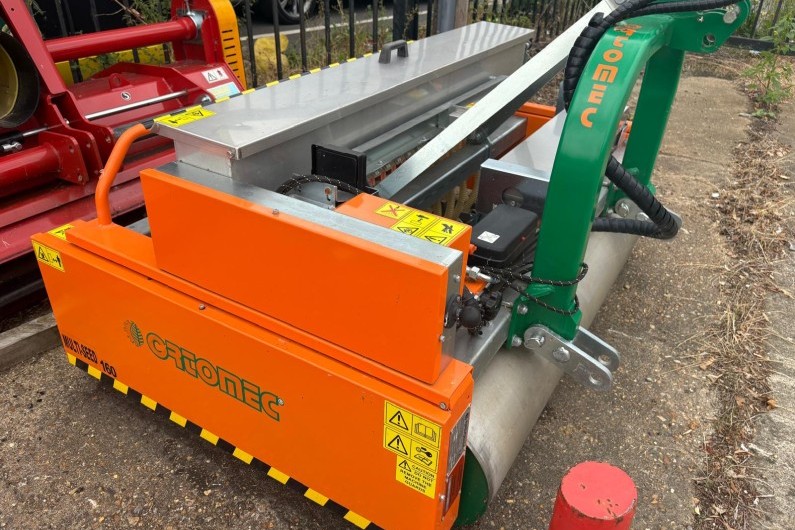

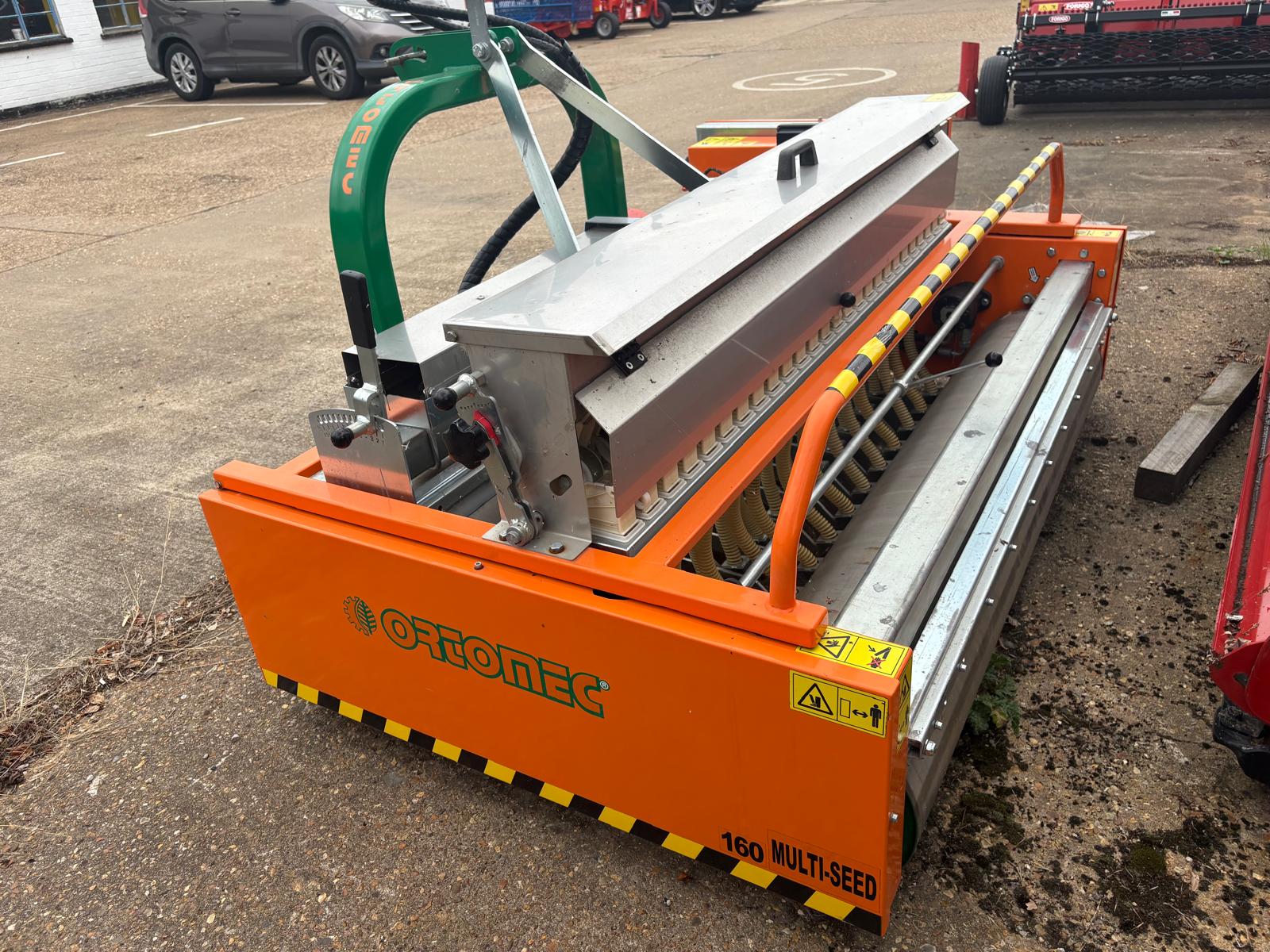

Ortomec Seed Drill

  • Seeder carried on the third hitch point on the tractor with electrically controlled mechanical seed distribution system;
  • Minimum power required: 30 HP;
  • Seeding width 160 cm;
  • Weight 540 kg;
  • Rapid seed change with unloading system by means of snap lifting of the hopper;

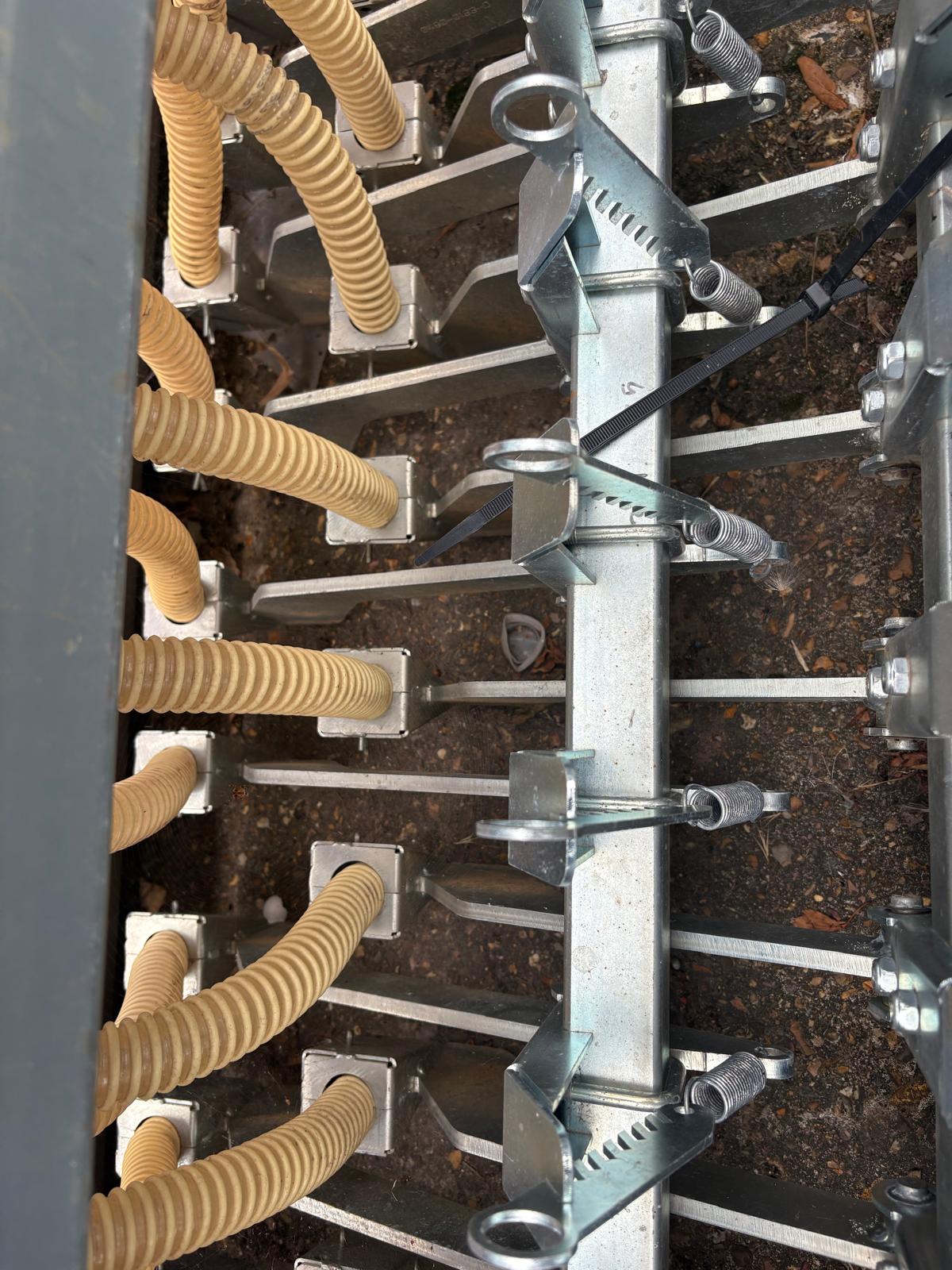

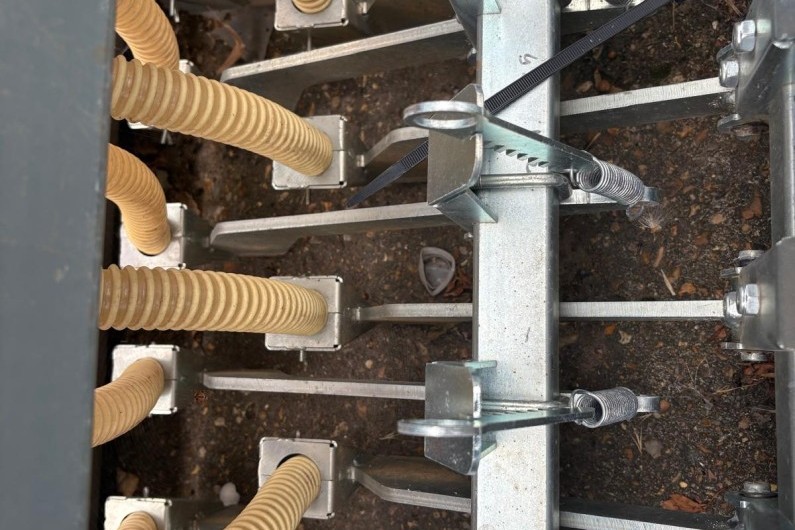

  • Listers with independent movement on each rows, equipped with spring for pressure on the ground;
  • Listers depth adjustable with gradual manual lever;
  • Rapid shifting of listers with minimum distance of 4 cm between rows;

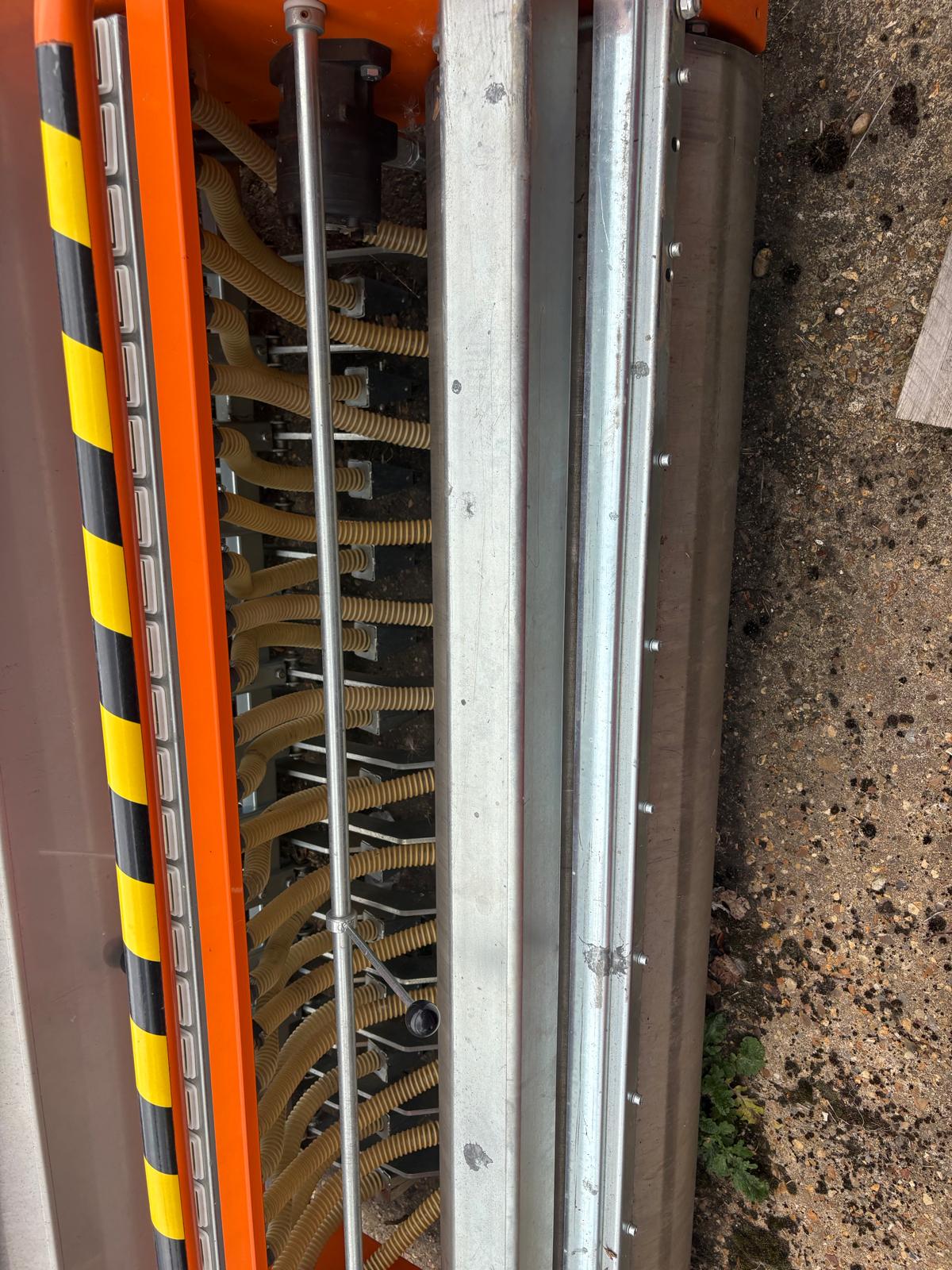

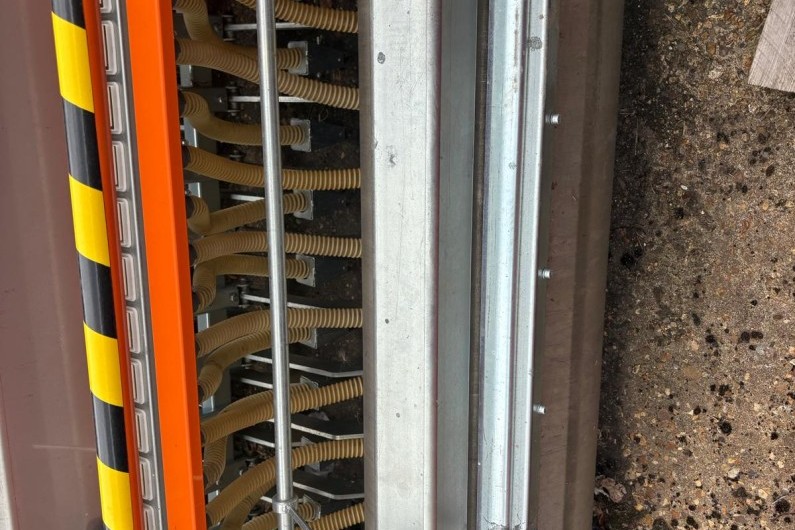

  • Single distributors for each seeding row with independent opening or closing;
  • Seeding quantity adjustable with touch-screen display and management program;
  • Moving and transmission parts protected by bad weather and dust thanks to the particular design of the “box-type” frame;
  • Rollers with hydraulic movement by connections from tractor;
  • Ø 323 mm stainless steel rollers equipped with rigid scraper for their cleaning;
  • Stainless steel seed hopper, maximum capacity 50 lt.
  • Painted machine frame with special anti-corrosion primer;
  • Electric vibration to the hopper for continuous seed feed, 12 V to tractor, with ON/OFF button on the touch-screen display;
  • Possibility to save seeding settings for each product type via the display;
  • This machine is equipped with 3rd hitch point category 2

Price: POA

Year: 2024

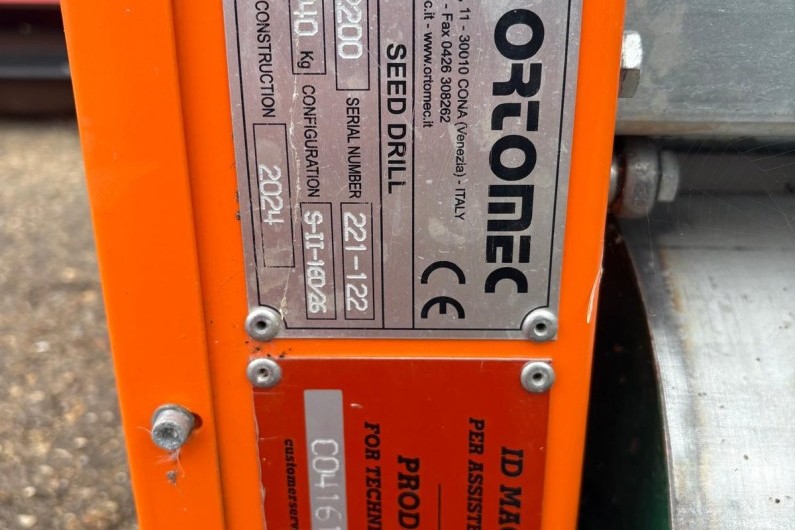

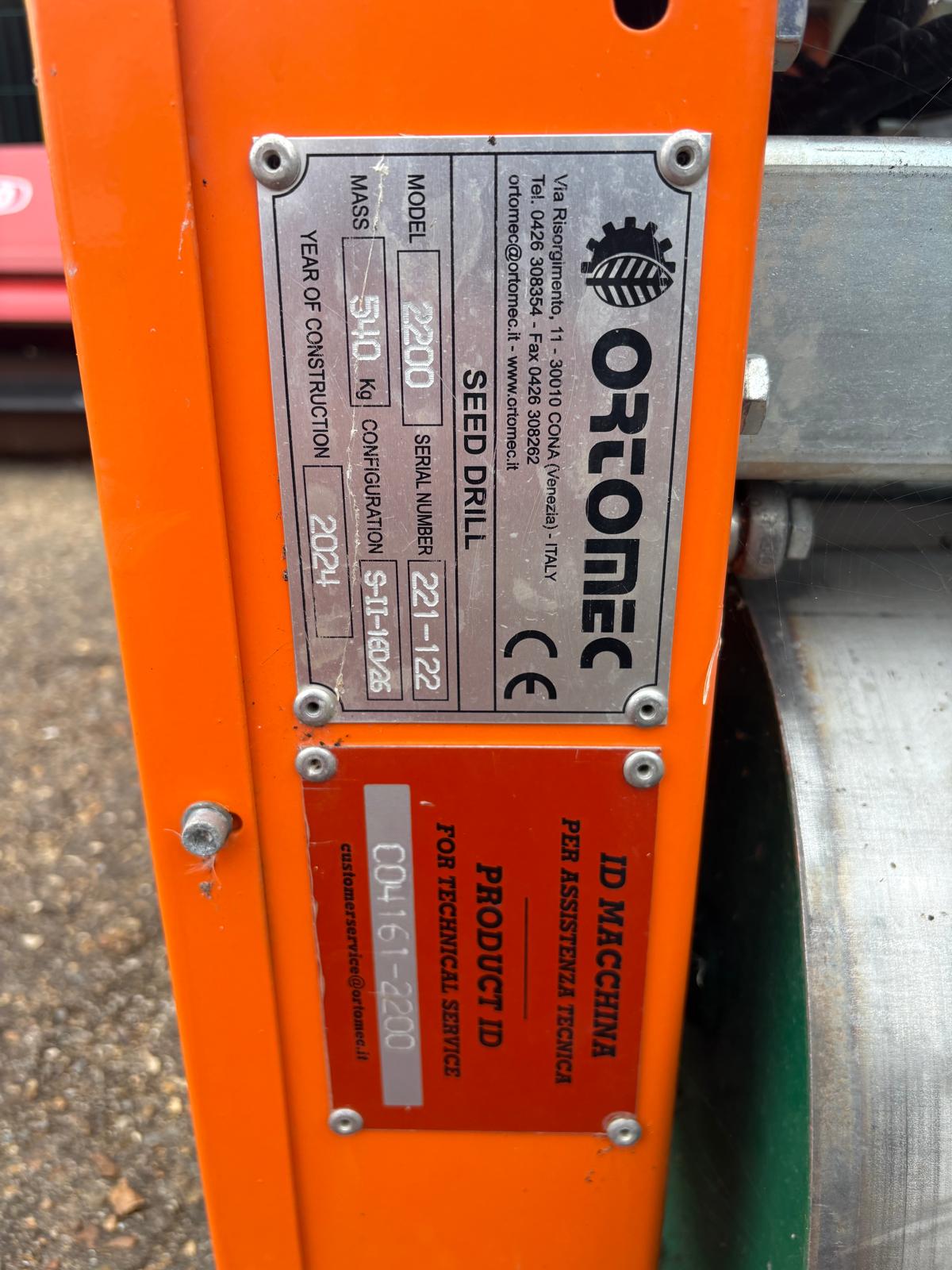

Serial No: 221-122

Email: sales@standen.co.uk
